Description

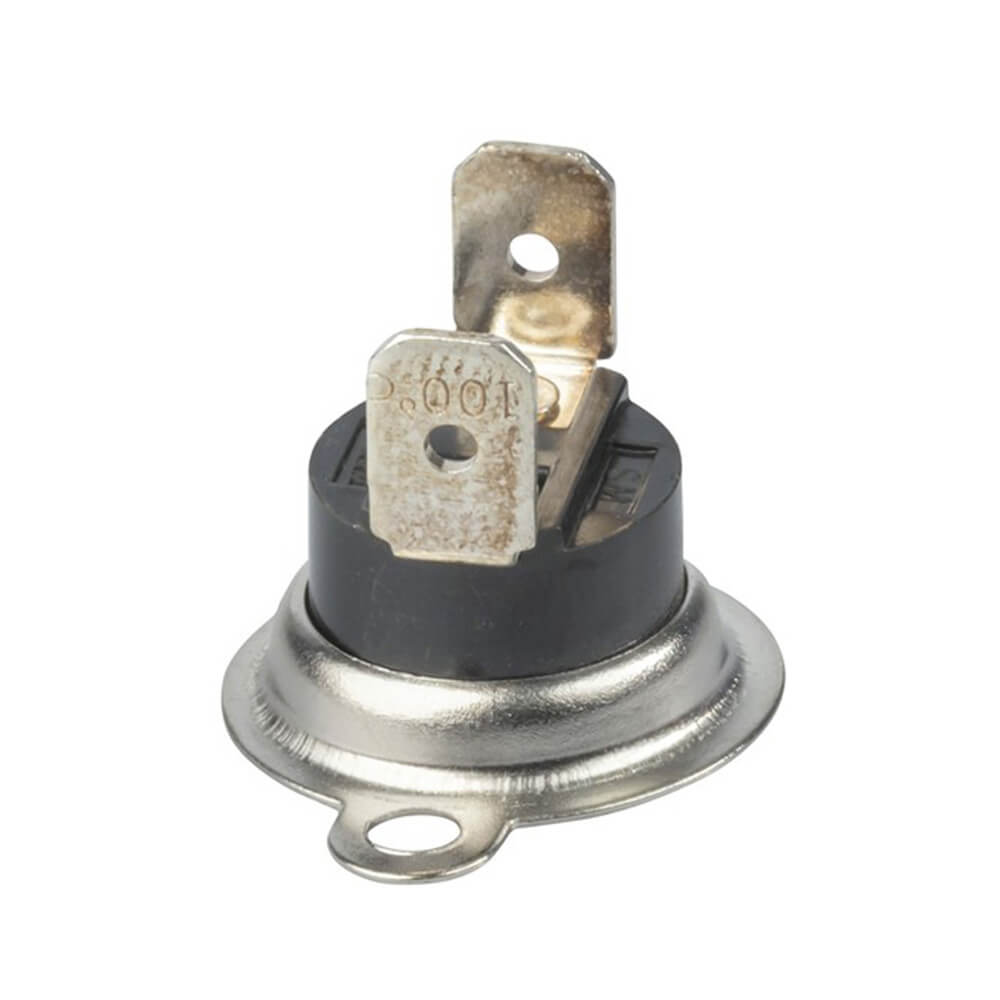

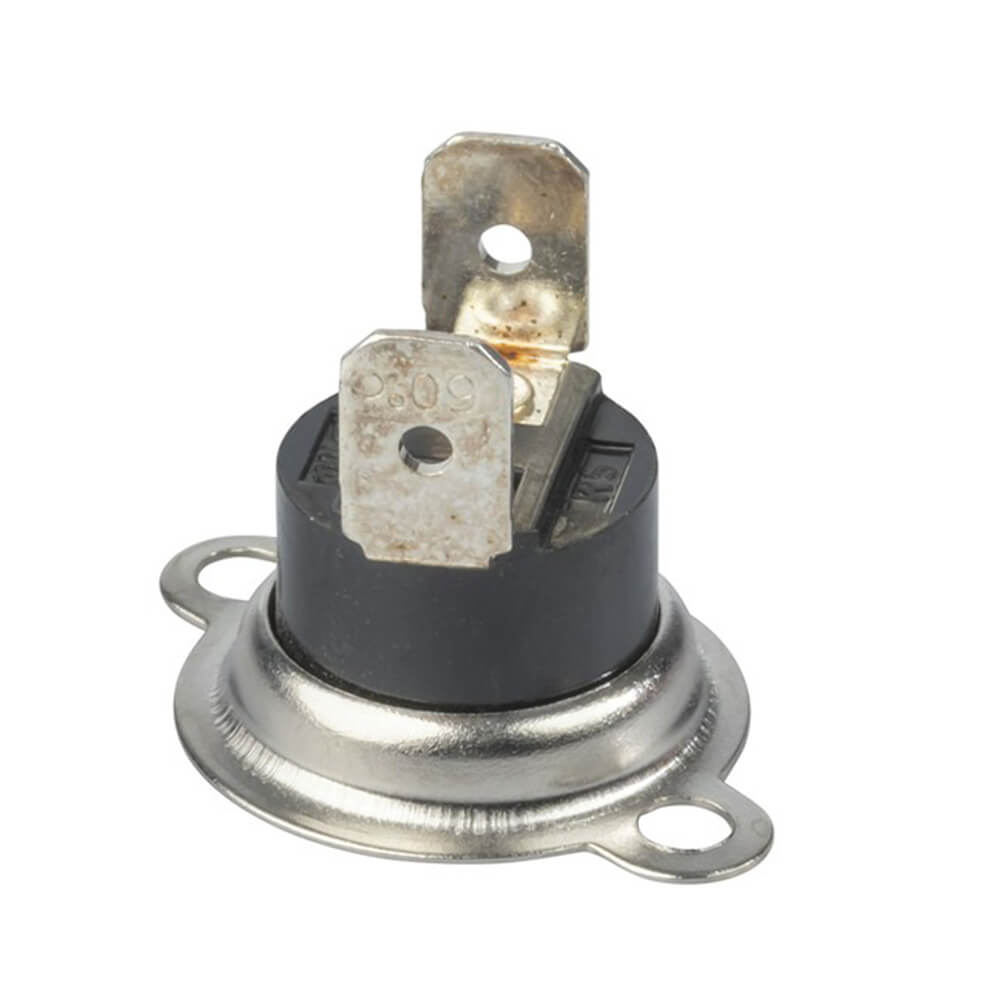

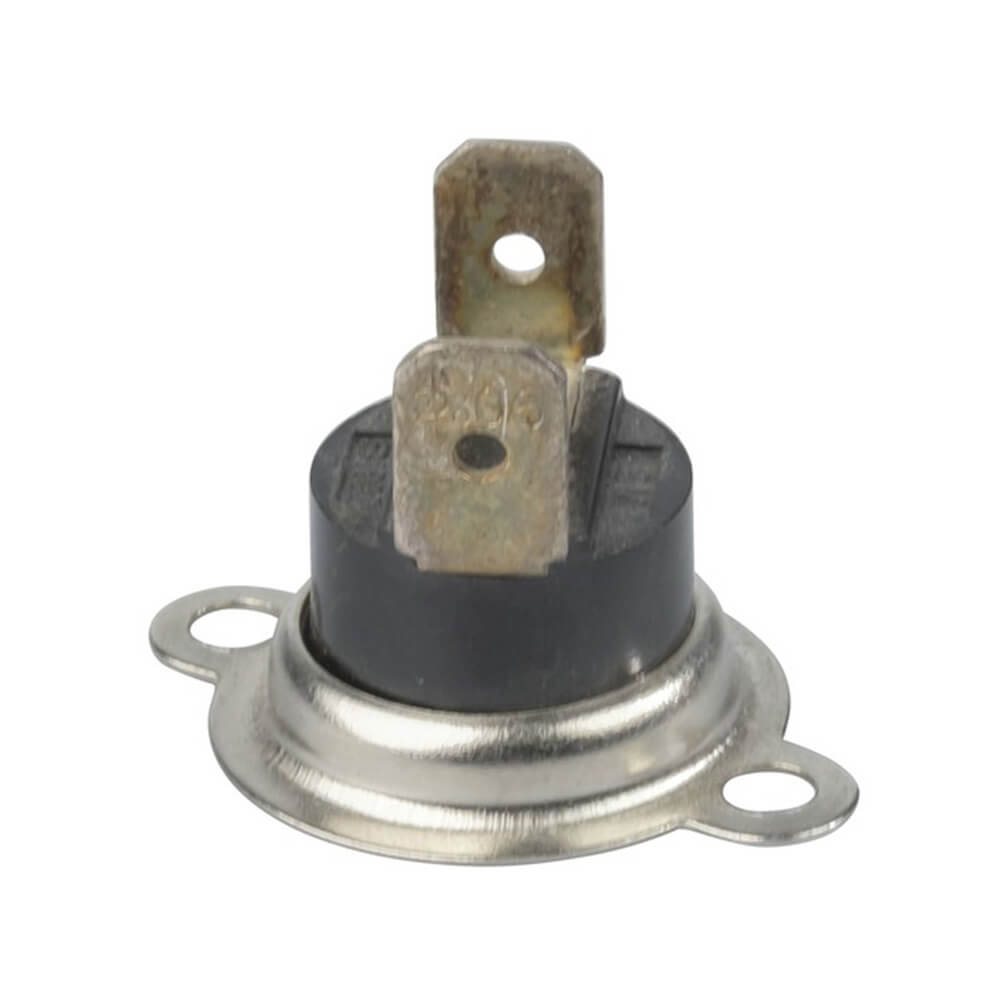

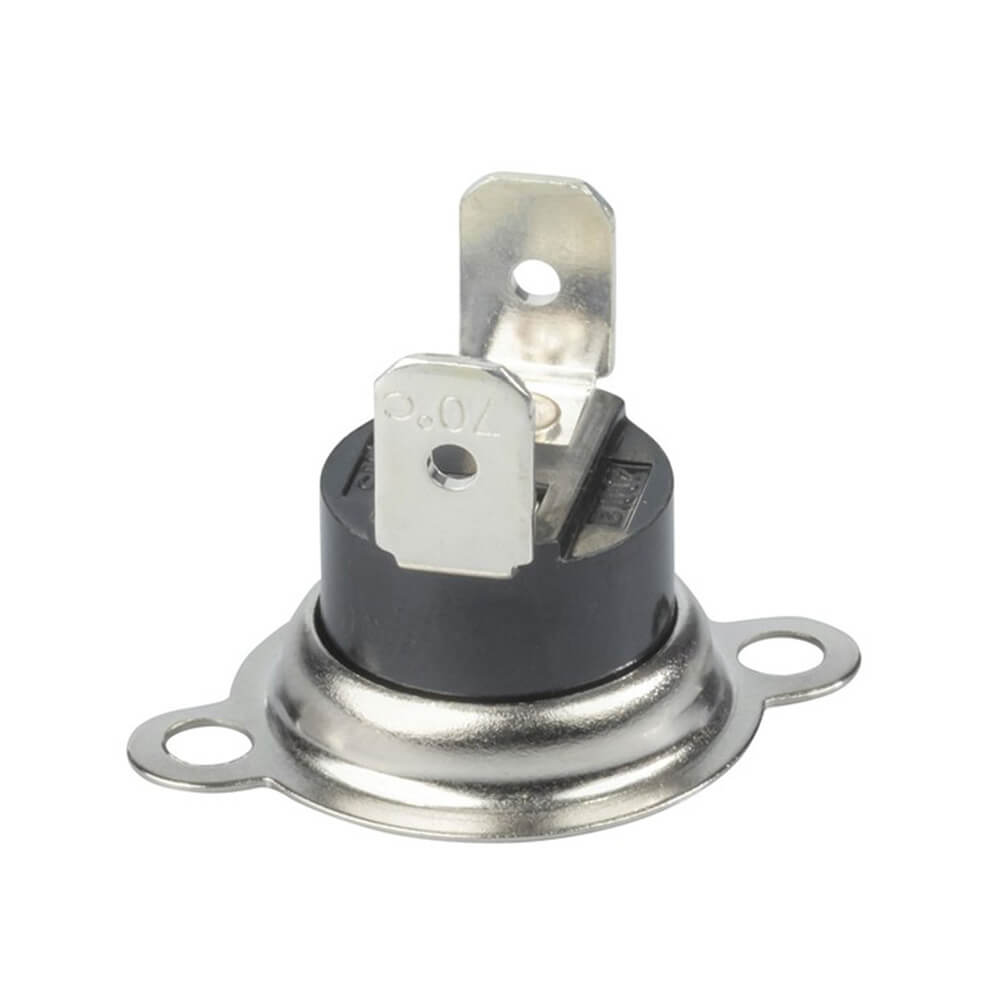

This phenolic-housed thermostat attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.
Product Specifications
- Type of thermal switch or fuse : Thermal circuit breaker
- Thermal reset method : Automatic
- Thermal trip temperature : 100DegC
- Thermal reset temp : 85DegC
- Normally open or normally closed : Normally closed
- operating tolerance : +/- 5DegC (32VDC), +/- 8DegC (125VAC), +/-10DegC (250VAC)
- reset differential : 10DegC - 50DegC
- contact endurance : 32VDC-100mA, 125VAC-10A, 250VAC-6A
- operation cycles : 50000, 100000, 30000
- Height : 21.2mm
- Diameter : 30.3mm
| Length : 3 cm | Width : 2.1 cm |
| Height : 2.1 cm |
