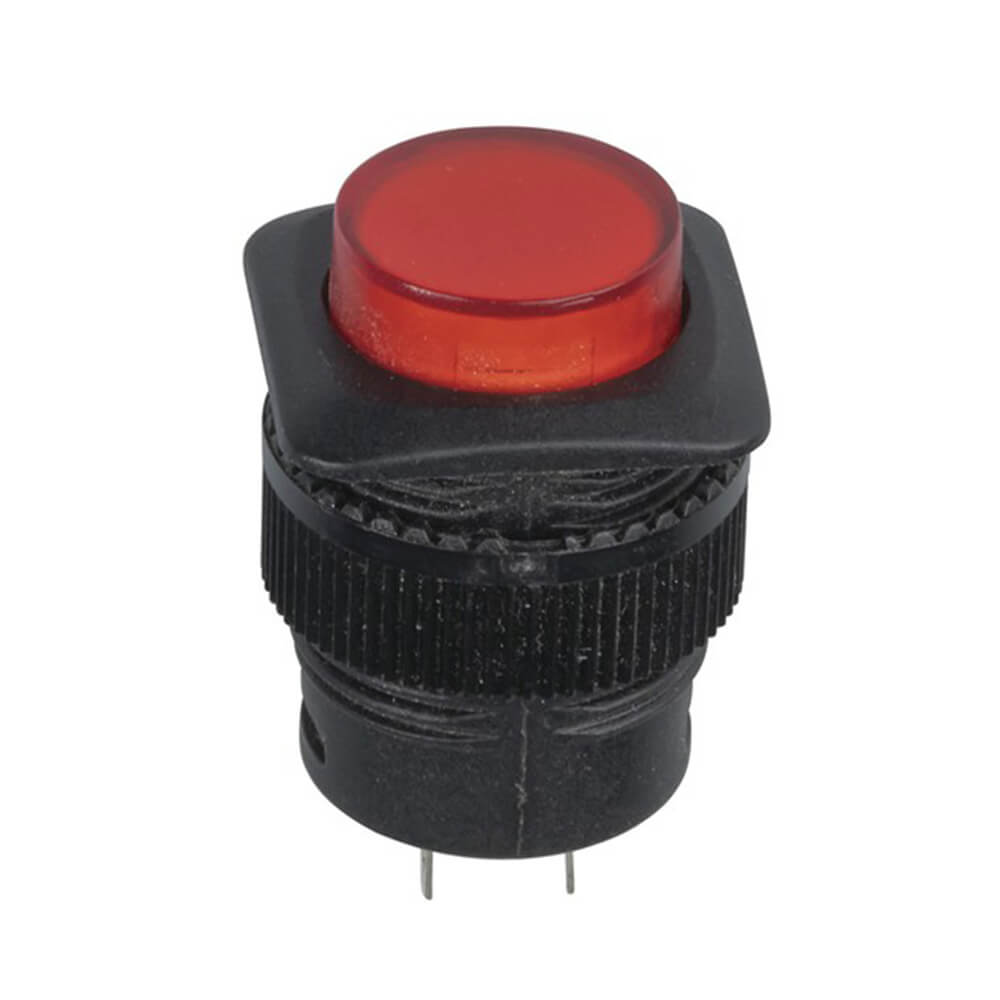

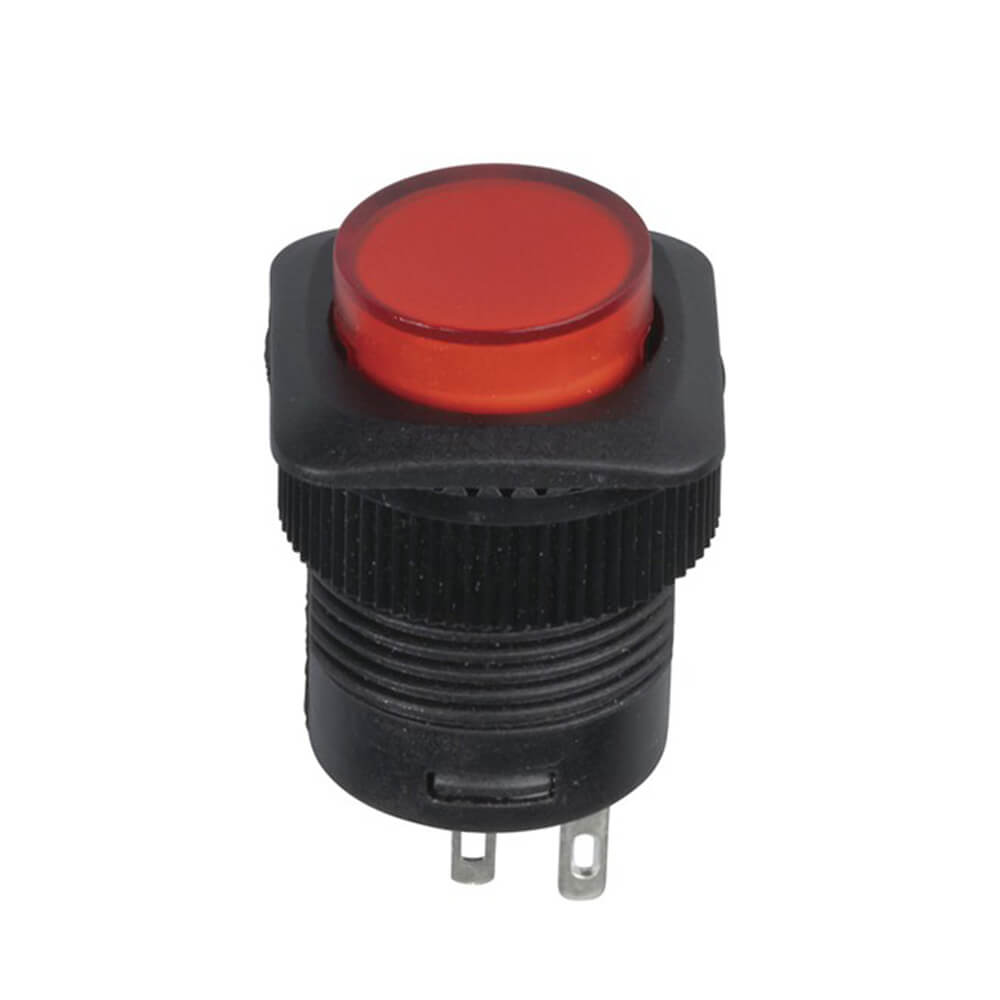

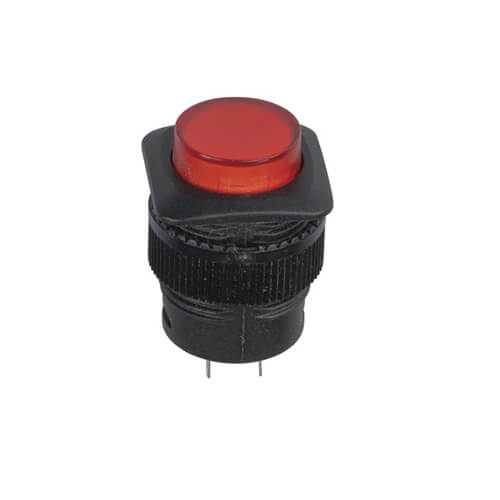

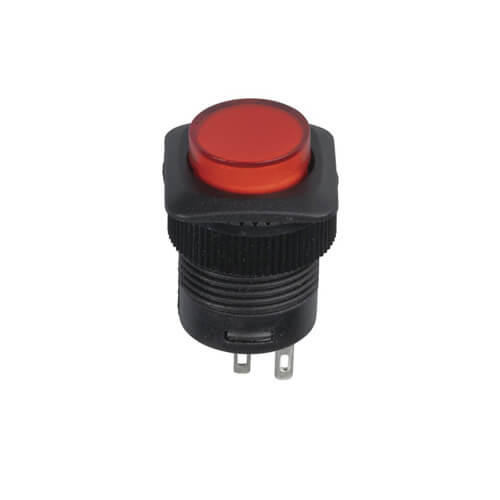

SPST LED Illuminated Switch (250V)

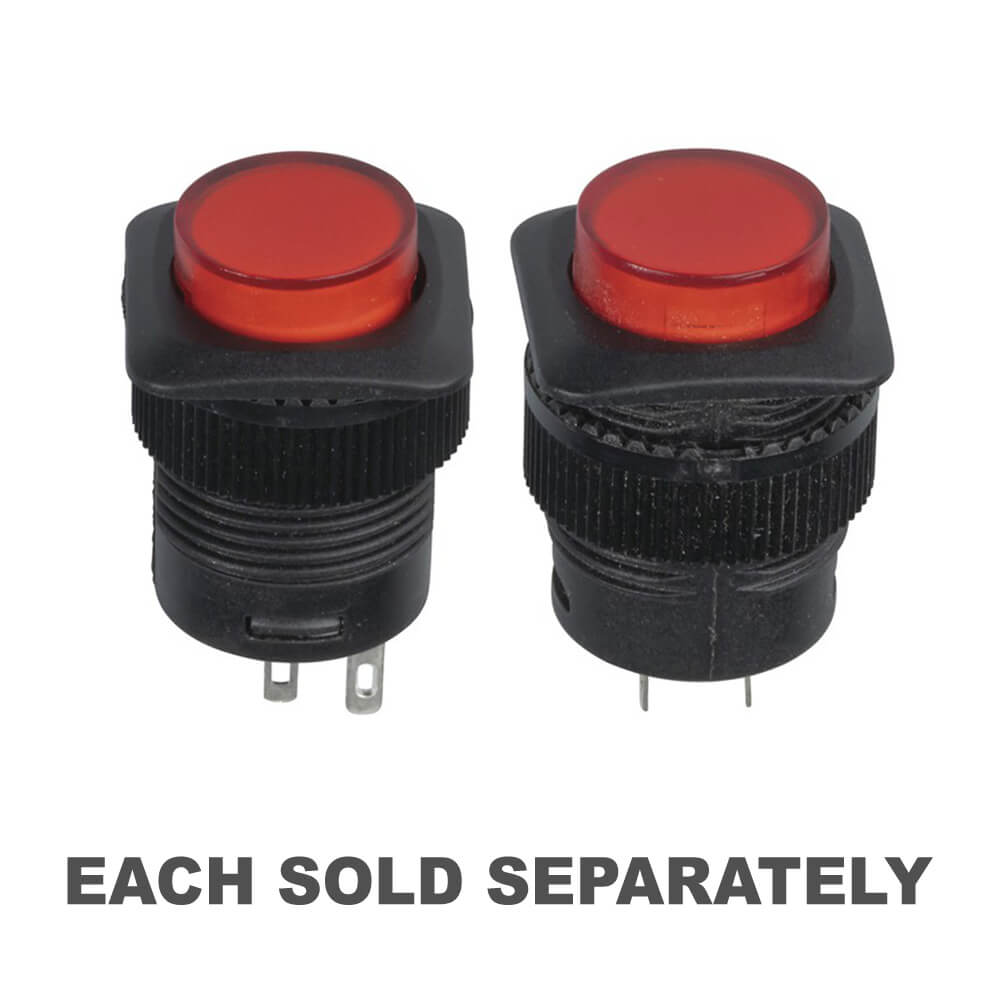

These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.

Product Specifications

• AC current rating : 1.2A
• AC Voltage rating : 250V
• Nominal Voltage : 2V
• Type : 5mm Standard LED
• Illumination Colour : Red
• Connection : Solder Legs
• Length : 18mm
• Width : 18mm
• Height : 30mm
• Diameter : 18mm
• Mounting Method : Panel
• Round Mount Hole Diameter : 16mm
• Switch Type : Pushbutton
• Pole Throw Type : SPST
• Poles / Contacts : 1 pole
• Throws / Positions : 1pos
• Switch Function : Locking On/Off
• Switch Connection : Solder Legs
• Switch Colour Coded : Red
• Contact Resistance : 50mΩ
• Insulation Resistance : 100Ω
• Dielectric Strength : 1500V
• Mechanism Material : Plastic
