Description

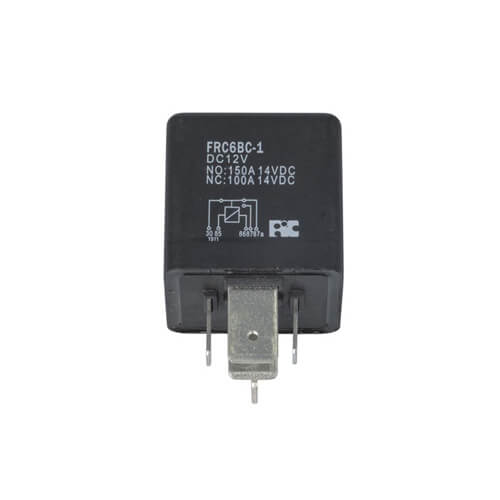

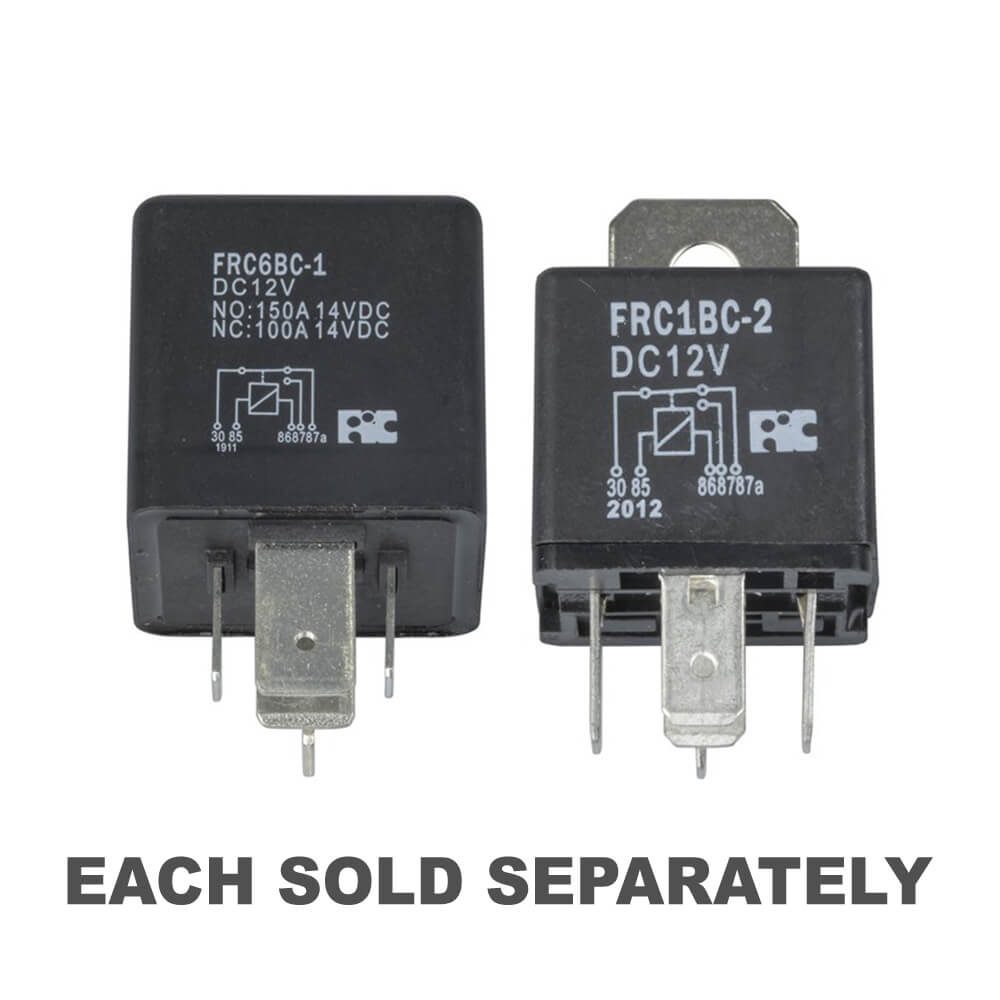

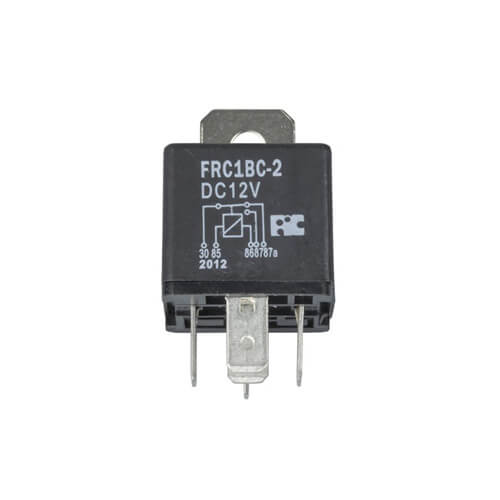

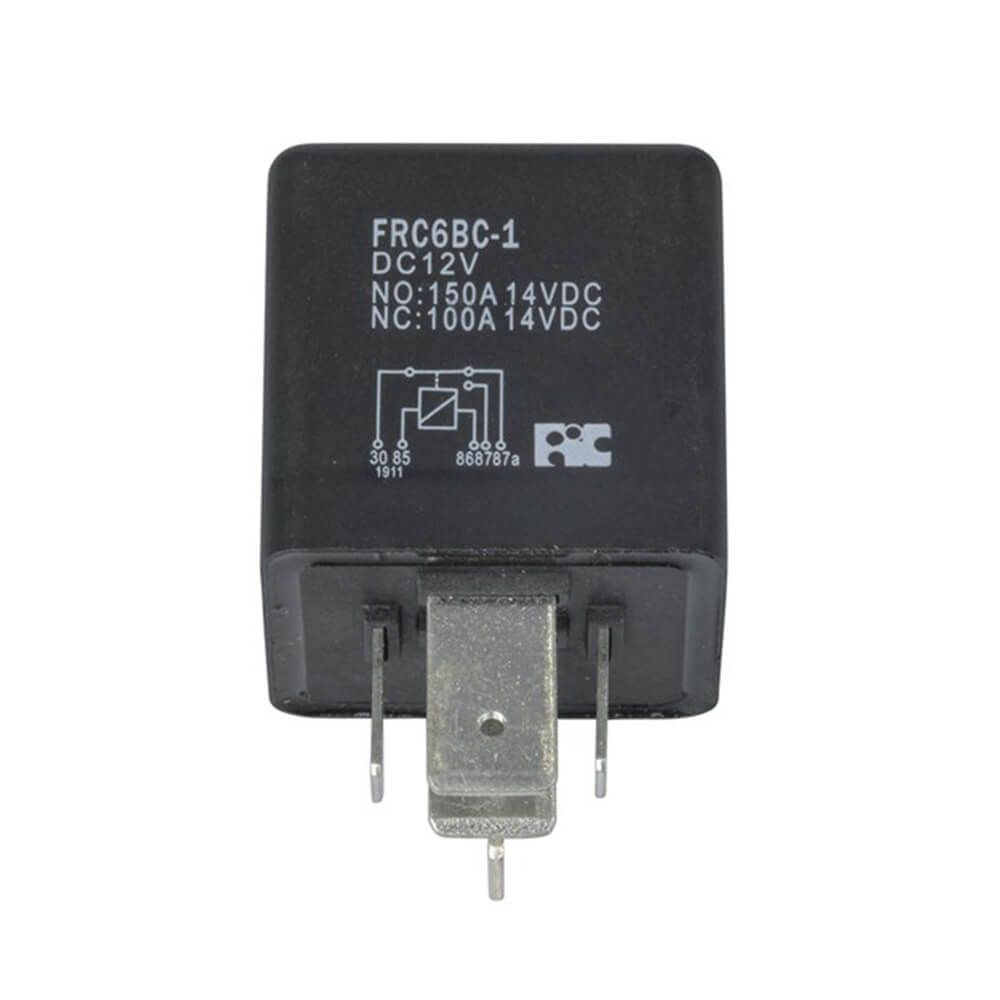

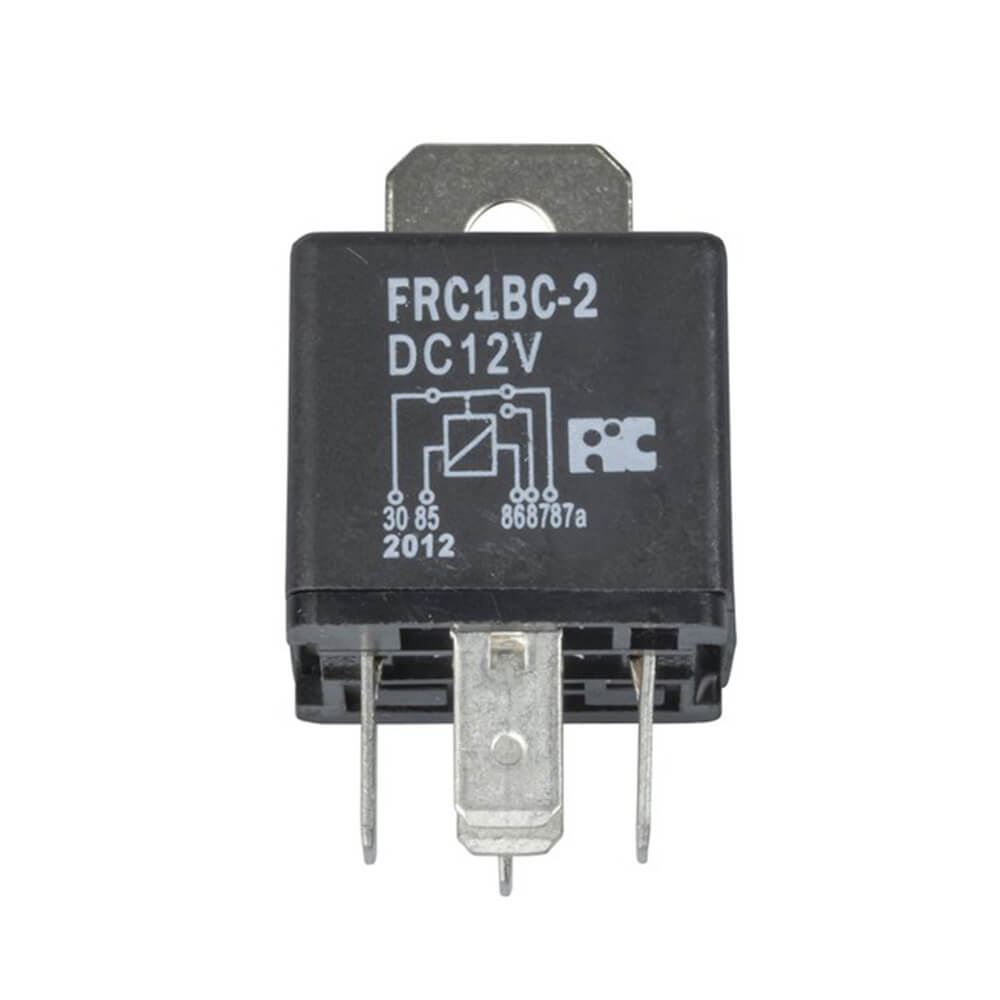

When too much current isn't enough - 150A contacts for ultra high power applications such as multiple lights, high power audio etc, in a small package.
Specifications:
Contacts: SPDT
Contact resistance: 30m ohm max
Contact rating: 150A
Coil voltage: 12VDC
Coil resistance: 50 ohms
Rated coil current: 240mA
Operate time: 10ms
Release time: 5ms
Operational life: 100,000 cycles
Product Specifications
- DC Voltage : 12V
- DC Current Draw : 150A
- Packaged Volume : 0.06l
- Packaged Weight : 0.06kg
- Packaged Length : 5cm
- Packaged Width : 3.5cm
- Packaged Height : 3.5cm
- Contact format : SPDT
- Coil Resistance : 30Ω
- DC Contact Voltage : 12V
- DC Switching Current (Opening) : 150A
- Operation Time : 10ms
- Release Time : 5ms
| Length : 5 cm | Width : 3.5 cm |
| Height : 3.5 cm |
