Relay Suitable for Switching Loads Up

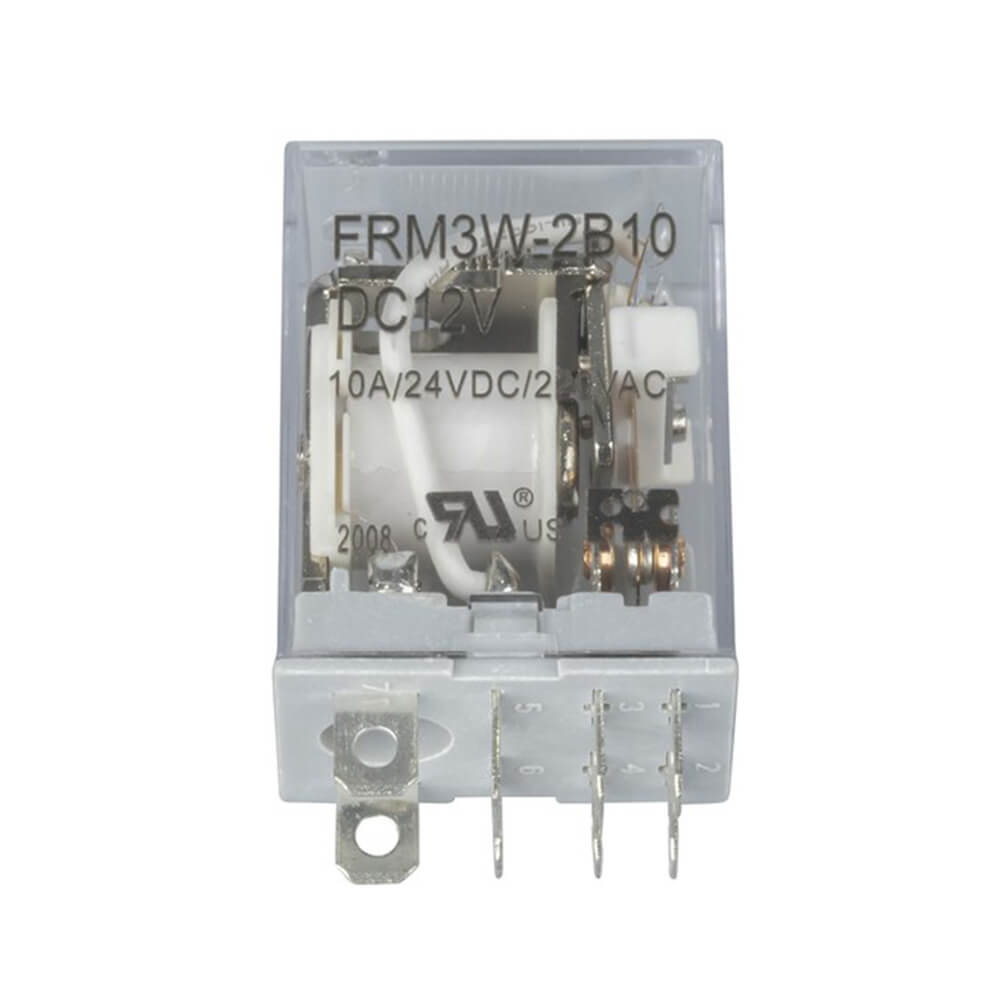

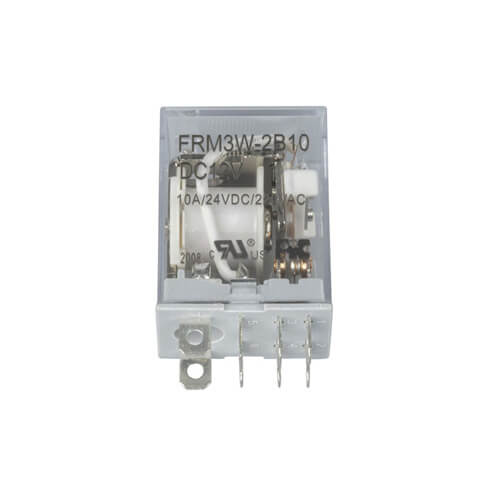

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.

Product Specifications

• Length : 20mm
• Width : 27mm
• Height : 35mm
• DC Voltage : 12V
• DC Current Draw : 75mA
• Item connection : Spade Terminals
• Mounting Method : Cradle/Socket Mount
• Packaged Volume : 0.02l
• Packaged Weight : 0.04kg
• Packaged Length : 2.5cm
• Packaged Width : 2cm
• Packaged Height : 4.5cm
• Device Type : Cradle Mounting Relay
• Input : DC
• Contact format : DPDT
• Nominal Voltage : 12V
• Coil Resistance : 160Ω
• Coil Current : 75mA
• AC Contact Voltage : 240V
• AC Switching Current (Opening) : 10A
• DC Contact Voltage : 24V
• DC Switching Current (Opening) : 10A
• Operation Time : 25ms
