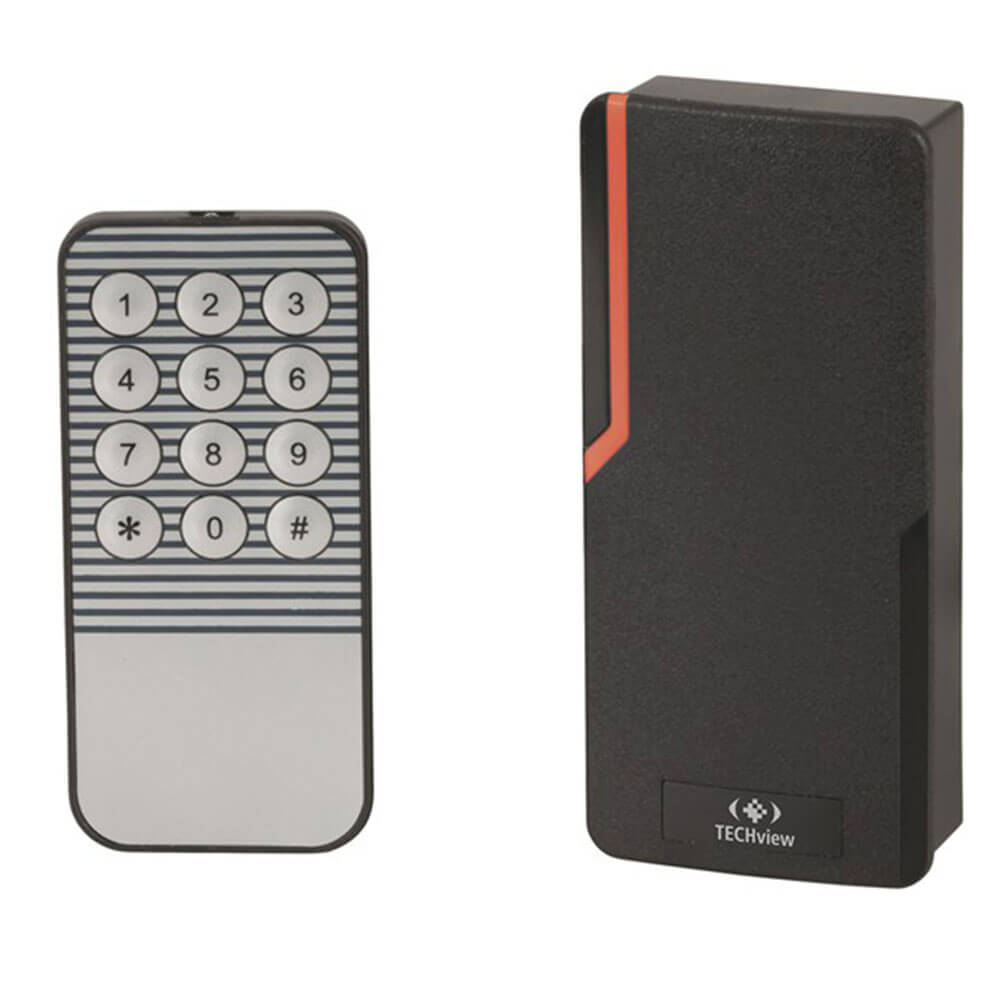

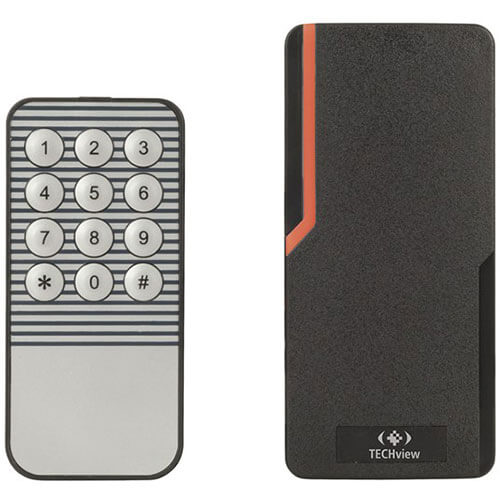

This is a robust mini access card reader which can be used standalone or slave with an Wiegand 26 input access control system. An infrared remote control is included to provide straight forward access to configuration and card add/removal (also secured by PIN for management functions). Inputs are provided for an electric door strike, exit button and an external alarm when used in standalone mode. With minimal additional wiring you can easily add fail safe / fail secure functionality. Security features can be optionally enabled such as lockout and alarm on 10 failed swipes in 10-minutes, for additional security awareness. Includes storage for up to 10,000 users and IP65 weatherproof housing.
Features:
- Standalone & Slave Control
- Reads EM & HID RFID Cards
- 10,000 User Capacity
- Weatherproof Design
- Anti-Tamper & Anti-Passback Protection
Specifications:
- Input Voltage: 12VDC
- Output Current: 3A (Max)
- Card Type: 125KHz
- Card Reading Distance: 30-80mm
- Adjustable Alarm Time: 0-3 minutes
- Wiegand Interface: 26 bit
- Wiring Connection: Electric Lock, Exit Button, External Alarm
- IP Rating: IP65
- Standby Current: ?15mA
Product Specifications
- IP Rating : 65
- Width : 48.0mm
- Height : 103.0mm
- Depth : 23.0mm
- DC Voltage : 12.0V
- Number of Users : 10000.0
- Compatible Card Types : EM/HID
- Contact Current : 3.0A
| Length : 14 cm |
Width : 9.7 cm |
| Height : 7 cm |
