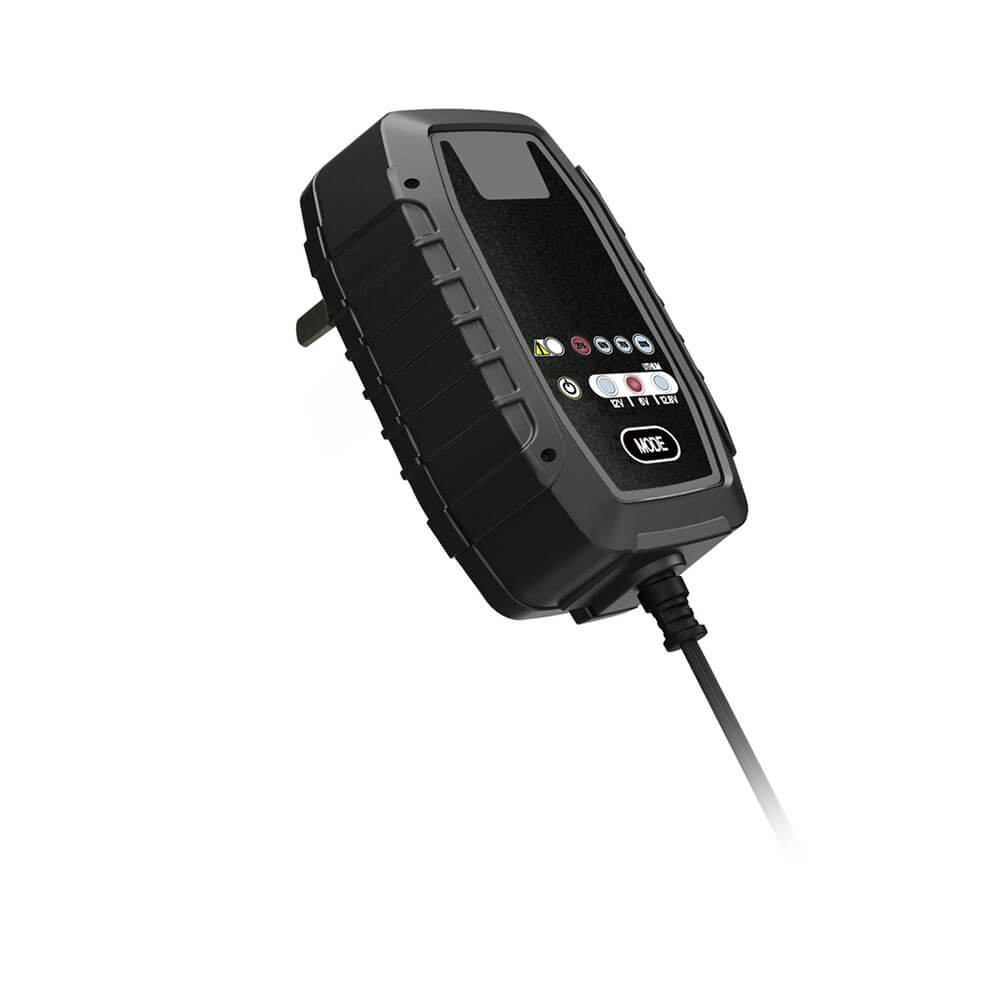

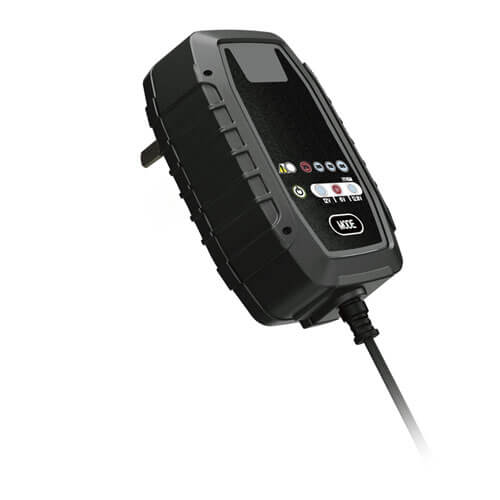

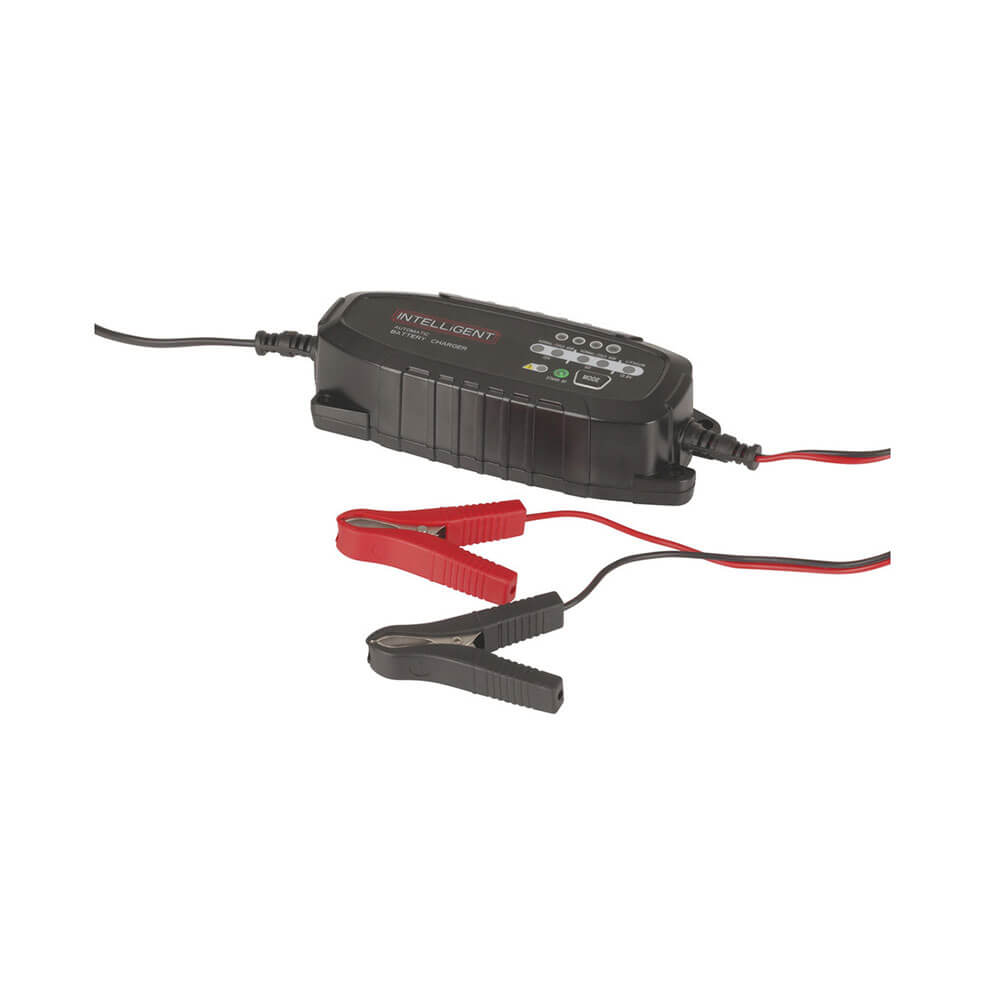

An intelligent battery charger to keep your batteries in peak working order. Suitable for 6V or 12V Lead Acid batteries between 1.2Ah - 26Ah, or 12.8V LiFePO4 from 2Ah to 15Ah. The seven charging modes keep batteries fully charged and in peak condition, and can also recover slightly sulfated batteries to increase battery life. LEDs on the front panel indicate the state of charge and a push button enables you to select the appropriate charge mode. The housing can be permanently mounted using the integrated mounting holes and the IP65 weatherproof rating means it can handle a little rain. The charger is mains powered, terminated to battery clips on a 1.8m lead, and features short circuit, overload, incorrect polarity, reverse battery, and safety timer protection.
Product Specifications
- Sealed, Gel, AGM or Flooded Lead (6/12V, 4Ah - 50Ah)
- LiFePO4 (6.4V/12.8V, 3Ah - 25Ah) - not guaranteed to work with all brands of 6V LiFePO4 Batteries. Confirmed it is compatible with Jaycar SB2200 6.4V 4.5Ah Lithium Deep Cycle Battery.
- 6V/12V dual function charger
- Suitable for Lead Acid and LiFePO4 batteries
- 8 state intelligent charging modes
- Can recover slightly sulfated batteries
- Charging Voltage:
- Lead Acid: 7.4V/14.7V DC
- Cold/AGM: 7.4V/14.7V DC
- LiFePO4: 7.25VDC/2cells, 14.5VDC/4 cells
| Length : 10.7 cm |
Width : 6.3 cm |
| Height : 3.4 cm |
