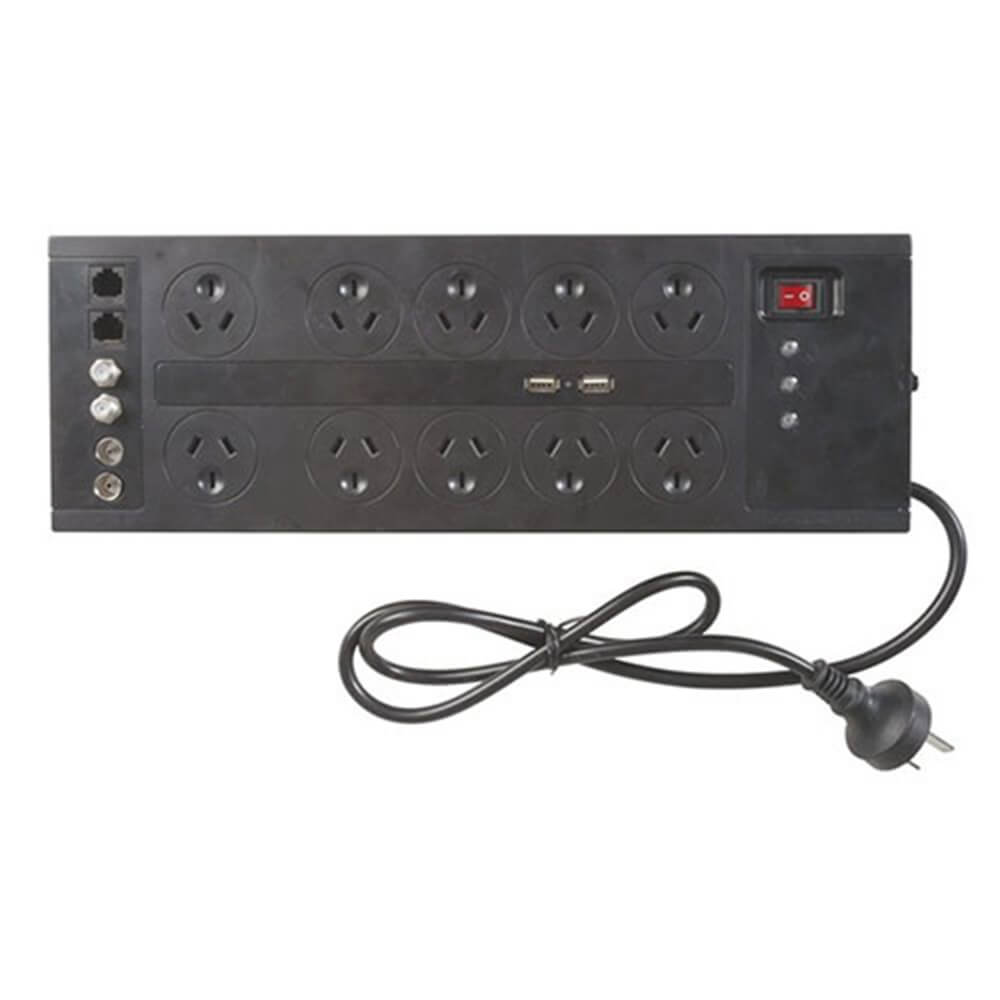

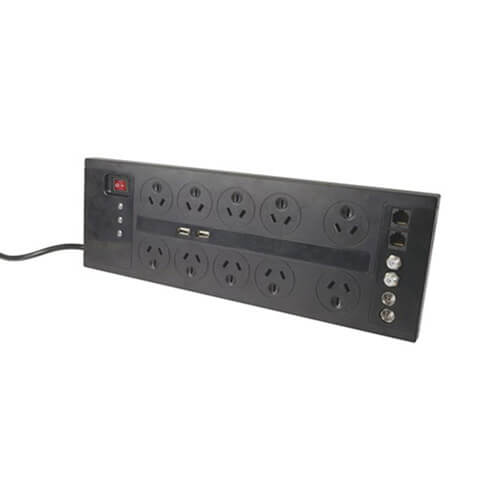

10 Way Home Theatre Surge Protected Powerboard (144Ka Black)

This is the perfect addition to your home theatre, music gear or home office setup. This powerboard features 10 surge and spike protected sockets, including 2 wide sockets for large power adaptors. It also includes 2 USB ports for charging smartphones and tablets. Surge protection and EMI/RFI filtering protect against mains power fluctuations, with each socket protected three ways: active, neutral and earth. Additional protection is provided by the built-in circuit breaker. This powerboard also has telephone and data protection (for a network connection), satellite/cable TV video protection, and protection for your TV antenna.

Features:

• Separate Telephone/Data Line & TV Antenna/Cable TV Protection
• 144,000A Surge Protection
• 2 USB Charging Sockets
• 2 Extra Wide Sockets

Power Filter:

• Surge Protection: Metal Oxide Varistors
• Supply Voltage: 250VAC
• Current Rating: 10A max. 2500W
• Protection Mode: A-N, N-E, E-A
• Max Surge Current: 144,000A
• Typical Capacitance: 400pF
• Clamping Voltage (@50A): <775V
• Energy Absorption: 4300 joules
• Response Time: <2ns
• Filtration: EMI/RFI

Telephone Line:

• Filter Type: Gas Tube Arrestor
• Surge Current: 1200A (1kV/µs)
• Impulse Discharge Current: 10kA (8/20µs)
• Capacitance: <5pF
• Clamping Voltage: 600V
• TV Surge Protection: Gas Tube Arrestor
• DC Strike Voltage: 230V to max. 600V
• Surge Current: 4500A
• Energy Dissipation: 225 joules
• Response Time: <10ns

Included:

• 1 x 1.8m TV Coax Plug to TV Coax Plug
• 1 x 1.8m RJ45 to RJ45
• 1 x 1.8m RJ12 to RJ12
• 1 x 1.8m F61 Plug to F61 Plug
• 2 x RJ45 to RJ12 reducers

Product Specifications

• Length : 360.0mm
• Width : 125.0mm
• Height : 32.0mm
• Mains Voltage Range : 230.0V, 240.0V
• Frequency : 50.0Hz
• Rated for AU Mains : true
• Mains Max Current : 10.0A
• Max Input Power : 2500.0W
• Mains Item connection : Mains AU/NZ 2 Pin (No Earth)
• Mains lead included : true
• Mains Lead Length : 1.0m
• USB Voltage Output Range : 5.0V
• USB Current Output : 1.0A, 2.0A
• Has USB power output? : true
• Supported USB Standards : USB 2.0
• Number of USB ports : 2.0pc
• Type of adaptor : Power Board
• Number of Sockets : 10.0pc
• Global Switch : true
• Individual Switches : false
• Illuminated Switches : true
• EMI Filter : true
• RFI Filter : true
• Input Type : Mains AU/NZ 3 Pin
• Input Connection : Plug
• Output Type : Mains AU/NZ 3 Pin
• Output Connection : Socket
• Output Quantity : 10.0pc
• Lead Length : 1.0m
• Retractable Lead : false
• Additional Surge Protection : RJ12
• Additonal Filter Type : Metal Oxide Varistor
• Surge Current : 1200.0A
• Imulse Discharge Current : 10000.0A
• Capacitance : 5.0pF
• Clamping Voltage : 600.0V
• Input Type : Mains AU/NZ 3 Pin
• Input Connection : Plug
• Output Type : Mains AU/NZ 3 Pin
• Output Quantity : 10.0pc
• Output Connection : Socket
• USB Charge Port : 2.0pc
• Protection Device : Metal Oxide Varistor
• Maximum Surge Current : 144000.0A
• Clamp Voltage : 775.0V
• Energy Absorption : 4300.0J
• Response Time : 2.0ns
