Description

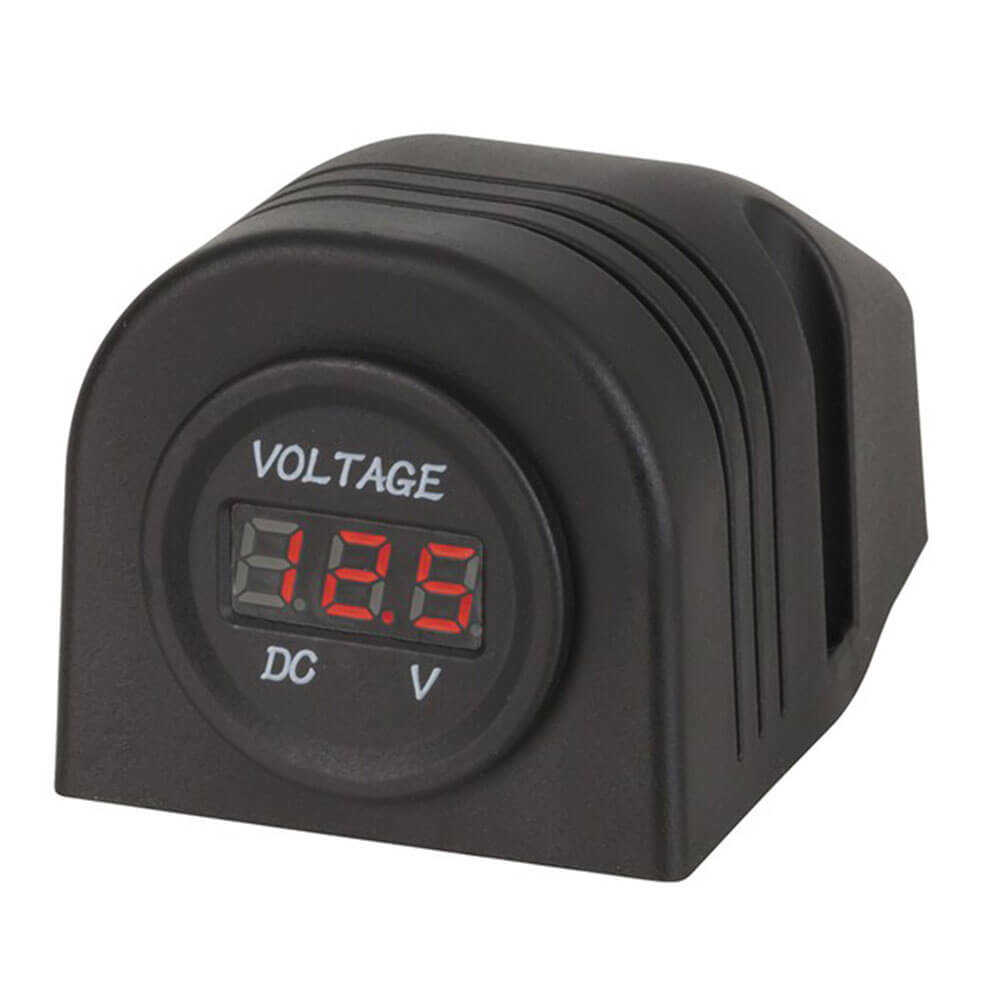

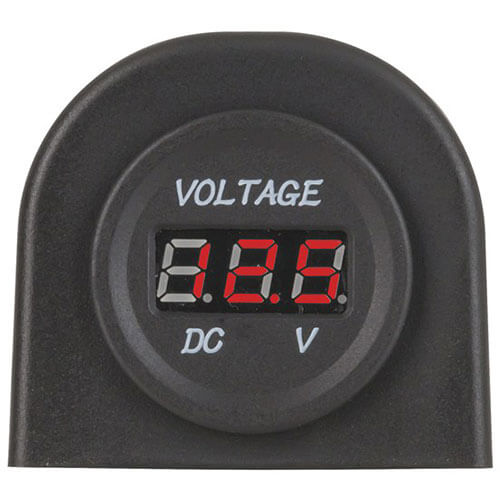

Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).
Product Specifications

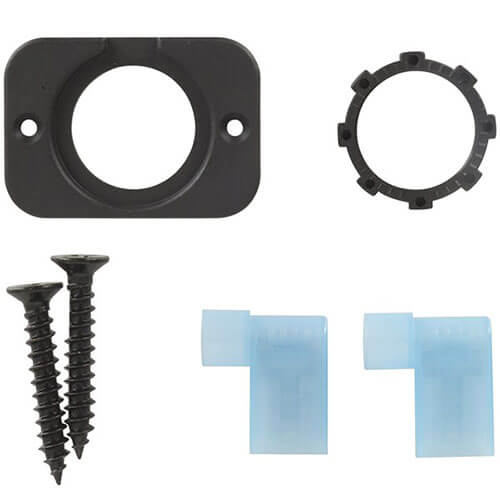

- Supplied with brackets for panel or surface mounting
- Connection is via 6.3mm spade terminals
- Also available with additional modules
- DC Volts Measurement Range : 5.0V, 30.0V
- Display Type : LED
- Display Height : 36.0mm
- Display Width : 26.0mm
- Display Backlight : Red LED Backlit
- Bargraph : false
- Width : 60.0mm
- Height : 42.0mm
- Dimensions for : Including Bracket
- Dimension details : Panel Mounting
- Mounting Method : Panel
- Attachment / Securing Method : Collar / Nut
- Square Mount Hole Width : 60.0mm
- Square Mount Hole Height : 42.0mm
- Dimension details : Including Bracket
- Dimensions for : Under Dash / Surface Mounting Hood
- Width : 55.0mm
- Height : 50.0mm
- Depth : 80.0mm
- Dimensions for : Without Bracket
- Dimension details : Voltmeter module
- Depth : 40.0mm
- Diameter : 36.0mm
| Length : 16.5 cm | Width : 8 cm |
| Height : 5 cm |
