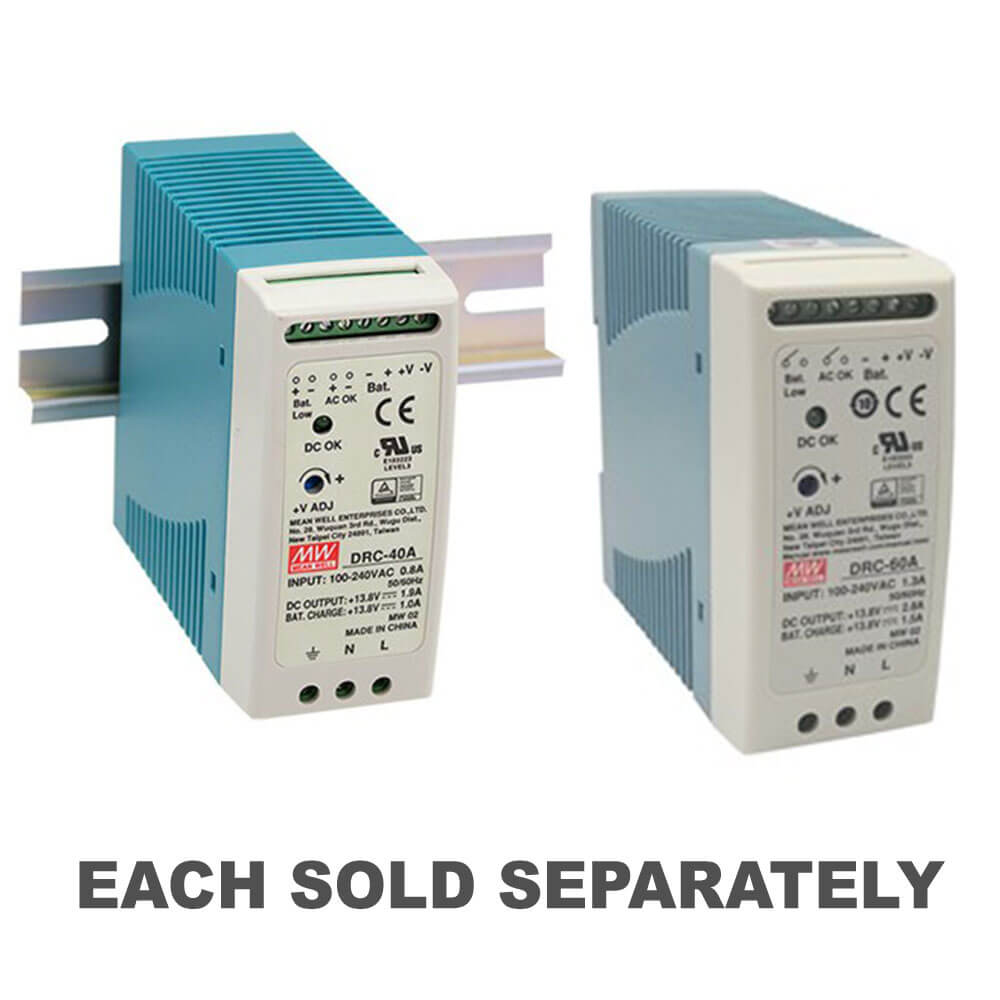

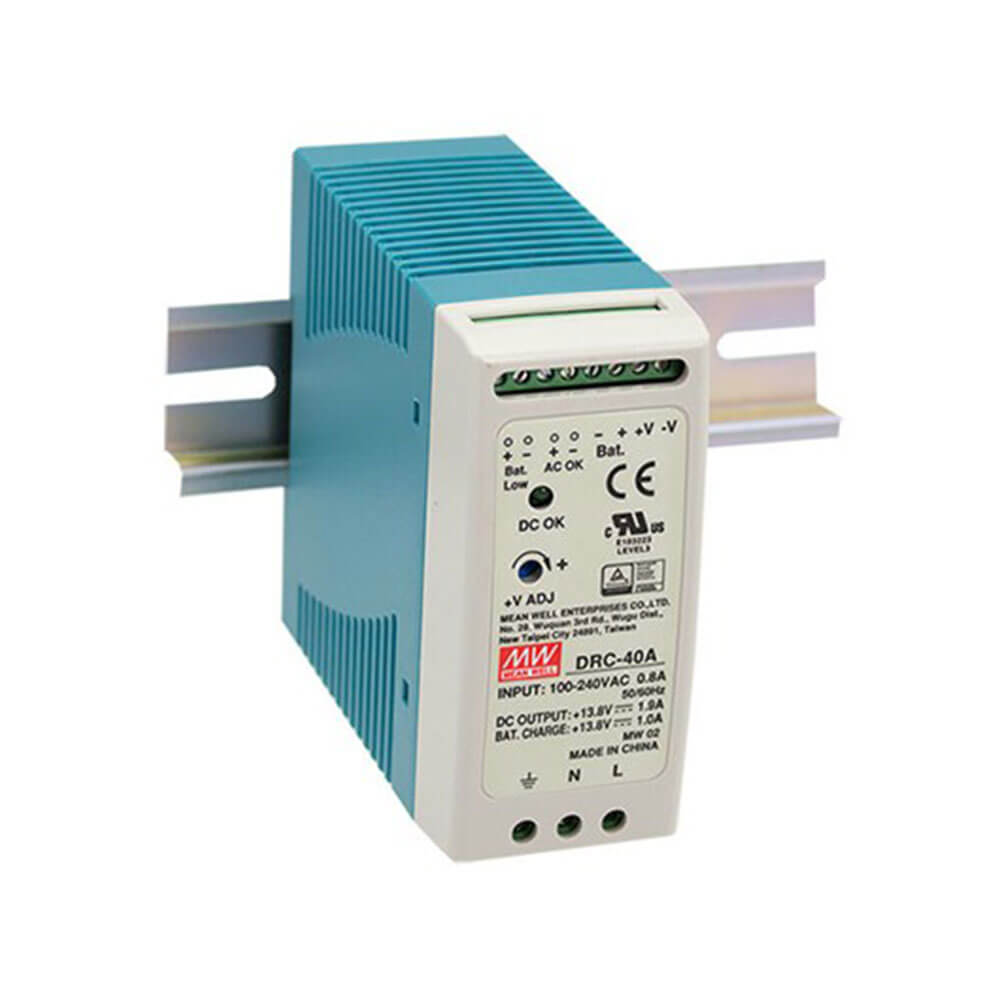

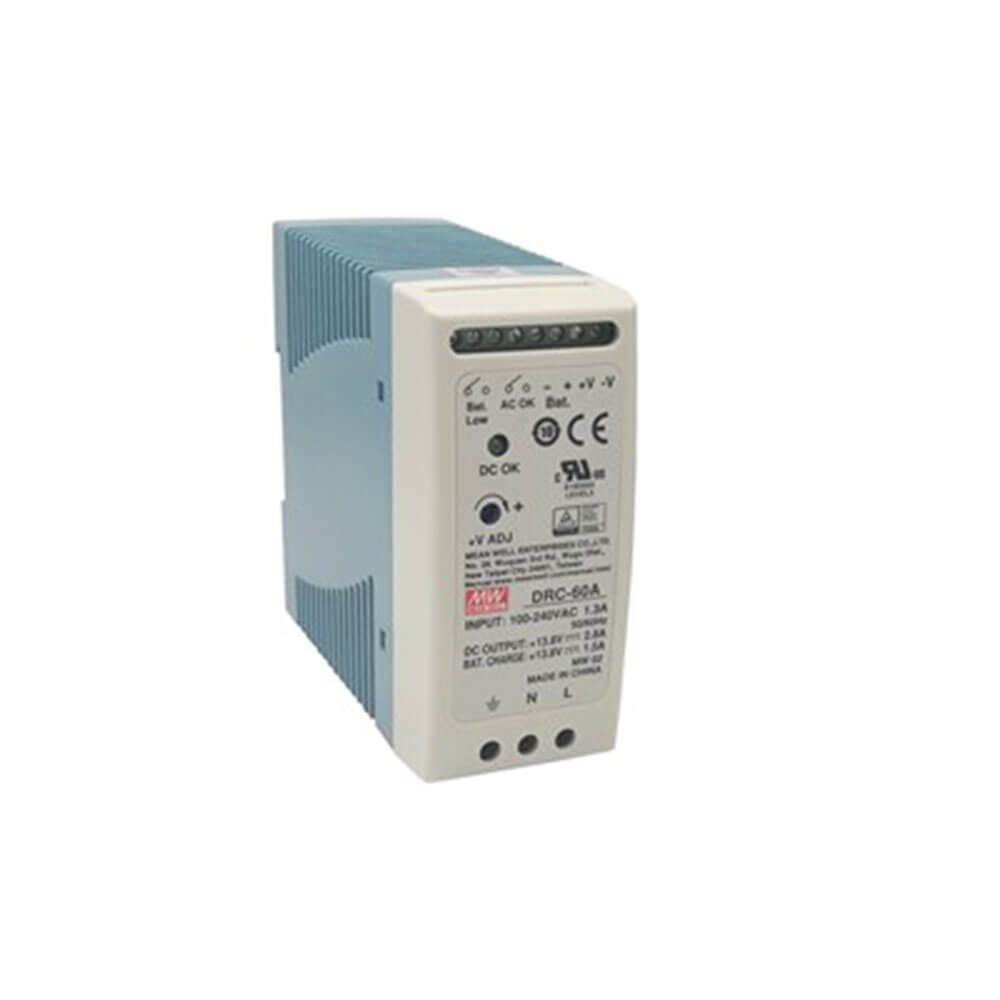

Mean Well Dual Output DIN Rail Power Supply

In addition to the primary output, there is a charger output with a smaller rated current, enabling backup power supply applications for security access systems. With a rated efficiency of 86%, it can operate with air convection cooling in temperatures from -30 to 70 degress Celsius. Key protection features include over-temperature, over-voltage, battery low cut off, and battery reverse polarity protection (by fuse).

Product Specifications

• Output Voltage: 13.8VDC
• Current: 1.9A/1A
• Power: 40W
• Ripple Voltage: 120mV p-p
• Input Voltage: 90-264VAC
• Input Frequency: 47-63Hz
• Inrush Current: 30A115VAC, 60A230VAC
