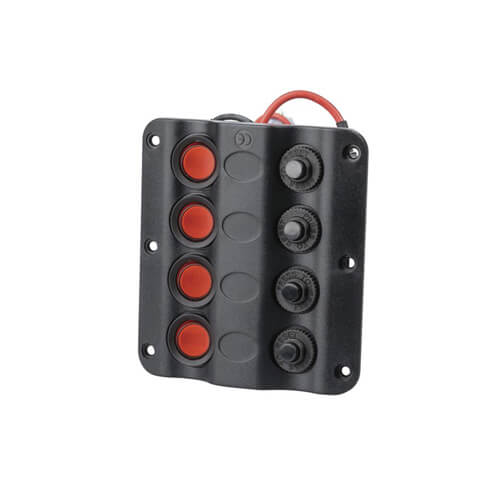

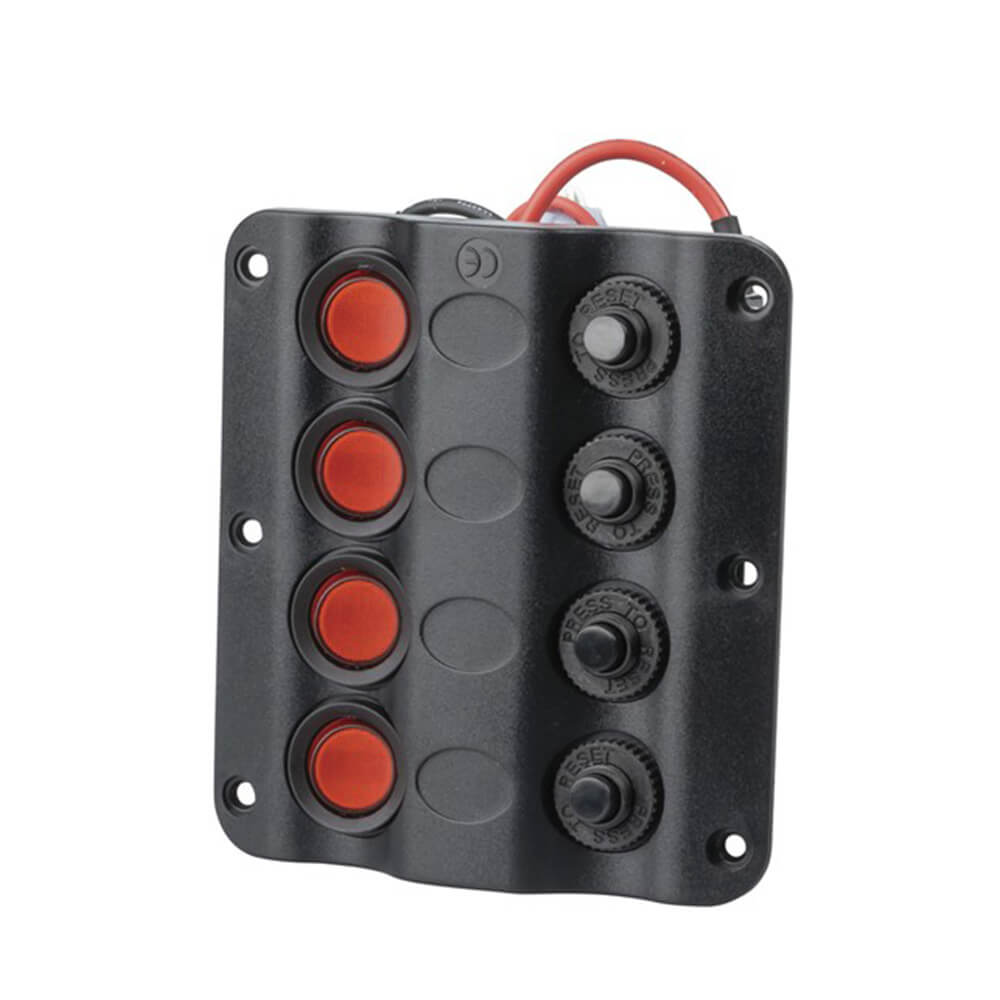

Marine Switch Panel with Circuit Breakers

TechBrandsSKU: 164799

This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
They are then soldered to a 10A rated illuminated rocker switch.
The rocker switches have 4.8 QC tabs and are single pole type.
The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.

Option: 4-Way

Variant

Price:

$60.99

Stock:

In stock

Quantity:

Can I get this before Christmas?
❌ Delivery within the United States
❌ International Delivery

Note: Products unavailable for pre-Xmas delivery will still be shipped as quickly as possible, with a likely delivery date some time after Xmas.

Share this product

There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.

Specifications:

DC current rating : 35A

DC Voltage : 12V

Nominal Voltage : 12V

Type : Incandescent

Illumination Colour : Red

Illumination Position : Top

Width : 100mm

Height : 110mm

Depth : 45mm

Mounting Method : Panel

Attachment / Securing Method : Screw Down

Square Mount Hole Width : 76mm

Square Mount Hole Height : 97mm

Packaged Volume : 0.22l

Packaged Weight : 0.17kg

Packaged Length : 3.8cm

Packaged Width : 11.6cm

Packaged Height : 5

Product Specifications

This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
They are then soldered to a 10A rated illuminated rocker switch.
The rocker switches have 4.8 QC tabs and are single pole type.
The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
