Description

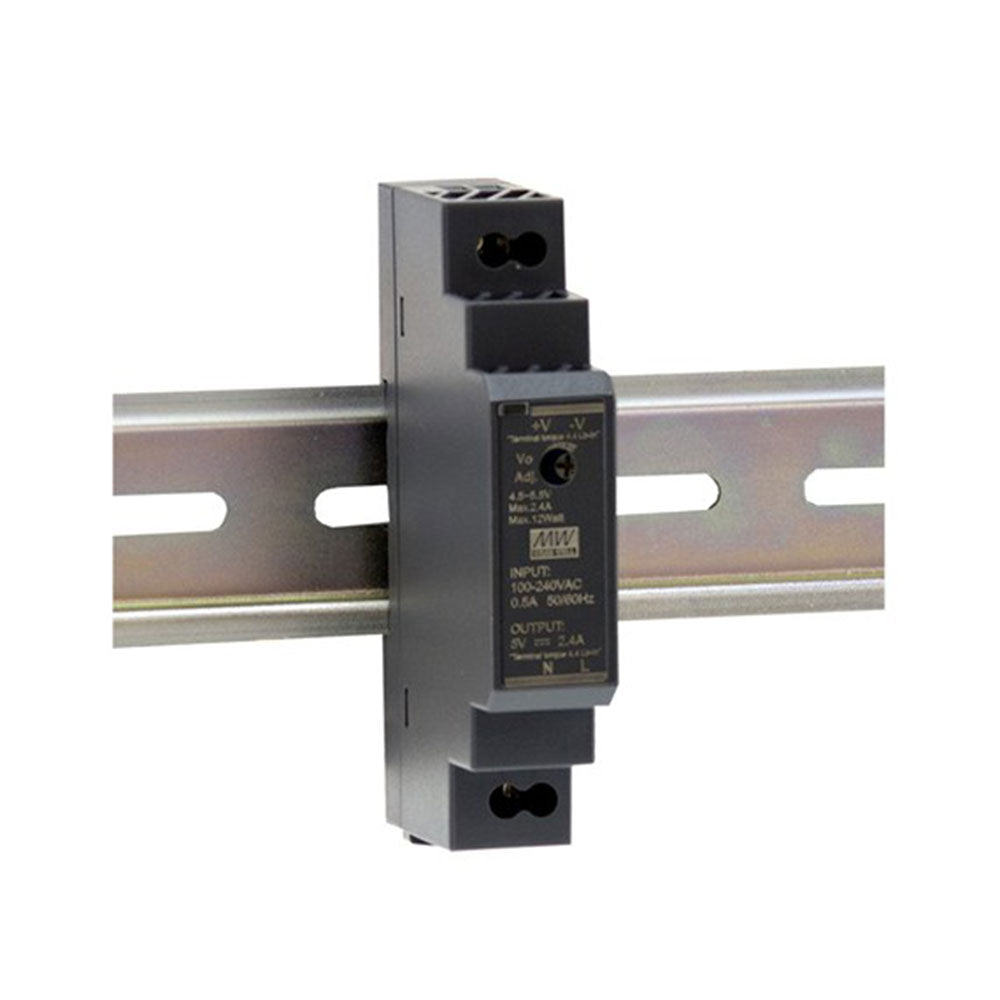

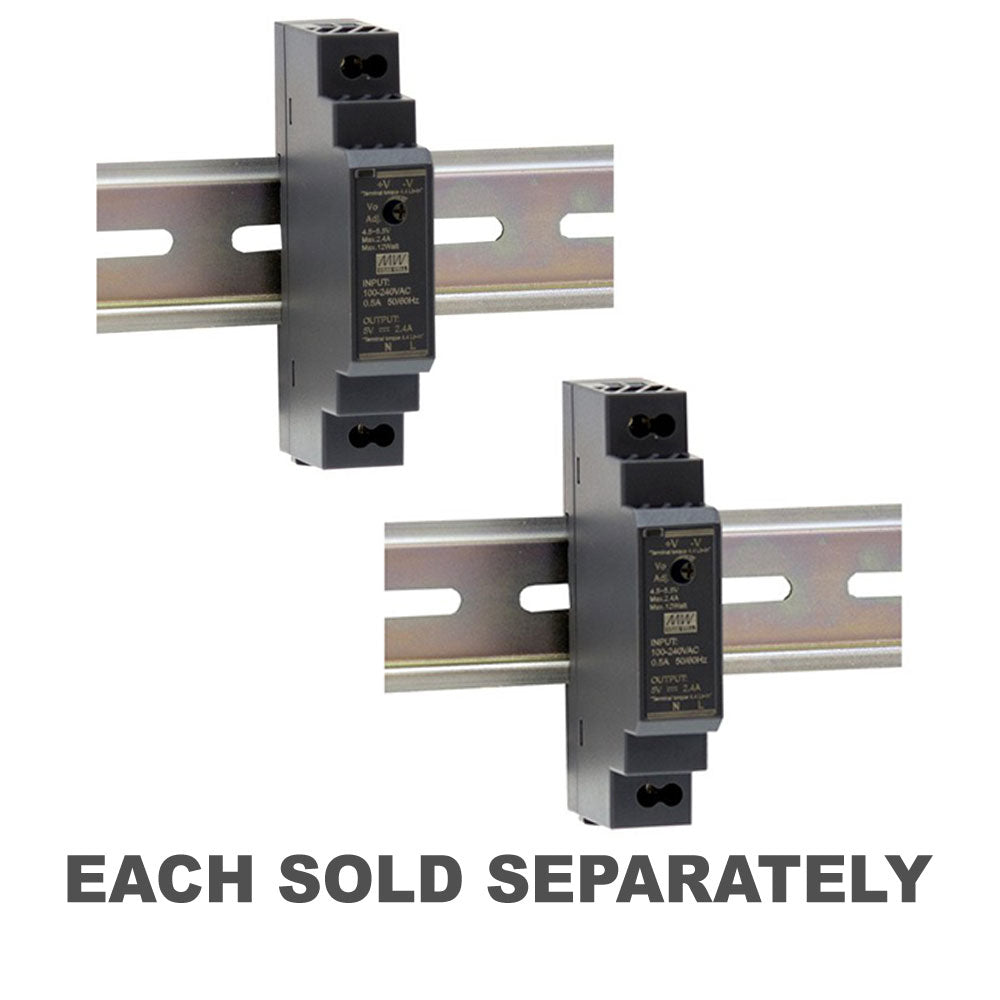

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (±10%) DC output voltage, and a working temperature range of -30DegreeC to +70DegreeC. Typical applications include building automation, household control system, industrial control system, factory automation and electro-mechanical apparatus.
Product Specifications
- Ultra slim design with 17.5mm(1SU) / 35mm(2SU) / 52.5mm(3SU) width
- Universal input 85~264VAC
- No load power consumption < 0.3W
- Isolation class II
- Pass LPS (limited power source)
- DC output voltage adjustable
- Short circuit / overload / over voltage protections
- Cooling by free air convection (working temperature: -30~+70DegC)
- DIN rail TS-35/7.5 or 15 mountable
- LED indicator for power on
- Input Voltage: 85 ~ 264VAC, 120 ~ 370VDC
- Input frequency: 47 ~ 63Hz
- Cold Start Inrush Current: 45A @ 230VAC
- DIN Rail Compatibility: TS35/7.5 or 15 mountable
| Length : 9.8 cm | Width : 6.3 cm |
| Height : 4 cm |
